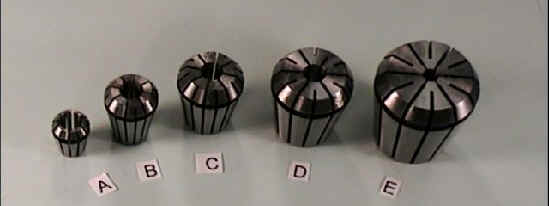

A) Type ESX12-7.0mm B) Type ESX16-7.0mm |
| C) Type ESX20-7.0mm D) Type ESX25-7.0mm |
E) Type ESX32-5.0mm |
| |
A) Type ESX12-7.0mm B) Type ESX16-7.0mm |
| C) Type ESX20-7.0mm D) Type ESX25-7.0mm |
E) Type ESX32-5.0mm |
ESX12 Cap. 1-7mm |
ESX16 Cap. 1-10mm |
||
| Parts | Bores in MM | Parts | Bores in MM |
| ESX12 ESX12 ESX12 ESX12 ESX12 ESX12 ESX12 ESX12 | 1.5
2.0
2.5
3.0
4.0
5.0
6.0
7.0
|
ESX16 ESX16 ESX16 ESX16 ESX16 ESX16 ESX16 ESX16 ESX16 ESX16 ESX16 | 1.5 2.0 2.5 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 |
ESX20 Cap. 1-13mm |
|
| Parts | Bores in MM |
| ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 ESX20 | 1.5 2.0 2.5 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 |
ESX25 Cap. 1-16mm |
ESX32 Cap. 1-20mm |
||
| Part | Bores in MM | Part | Bores in MM |
| ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 ESX25 | 1.5 2.0 2.5 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 | ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 ESX32 | 1.5 2.0 2.5 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 |
